Replacement Water Softener Tank – Pre-Loaded with Fine Mesh Resin, Gravel, & Riser Tube (Well Water Applications)

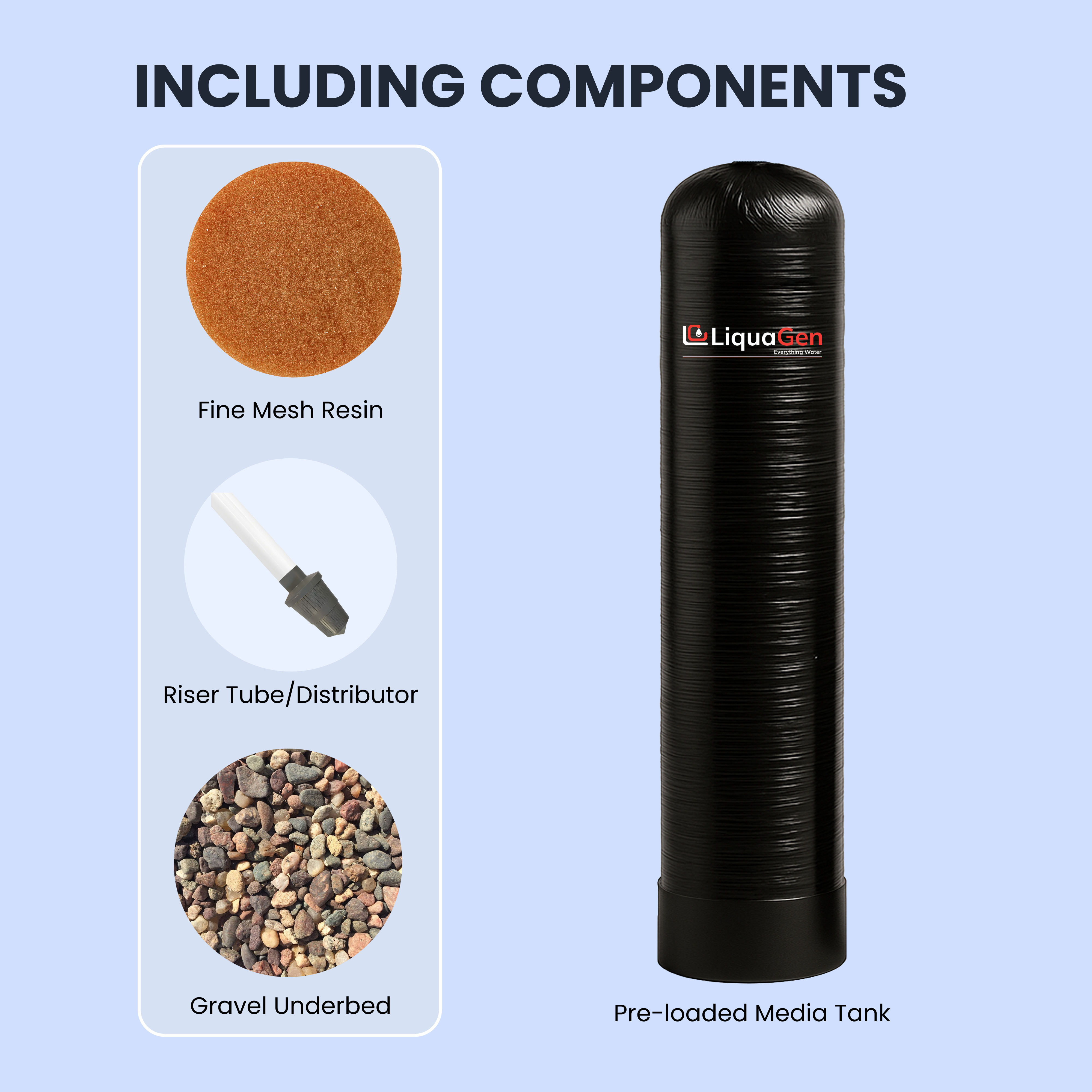

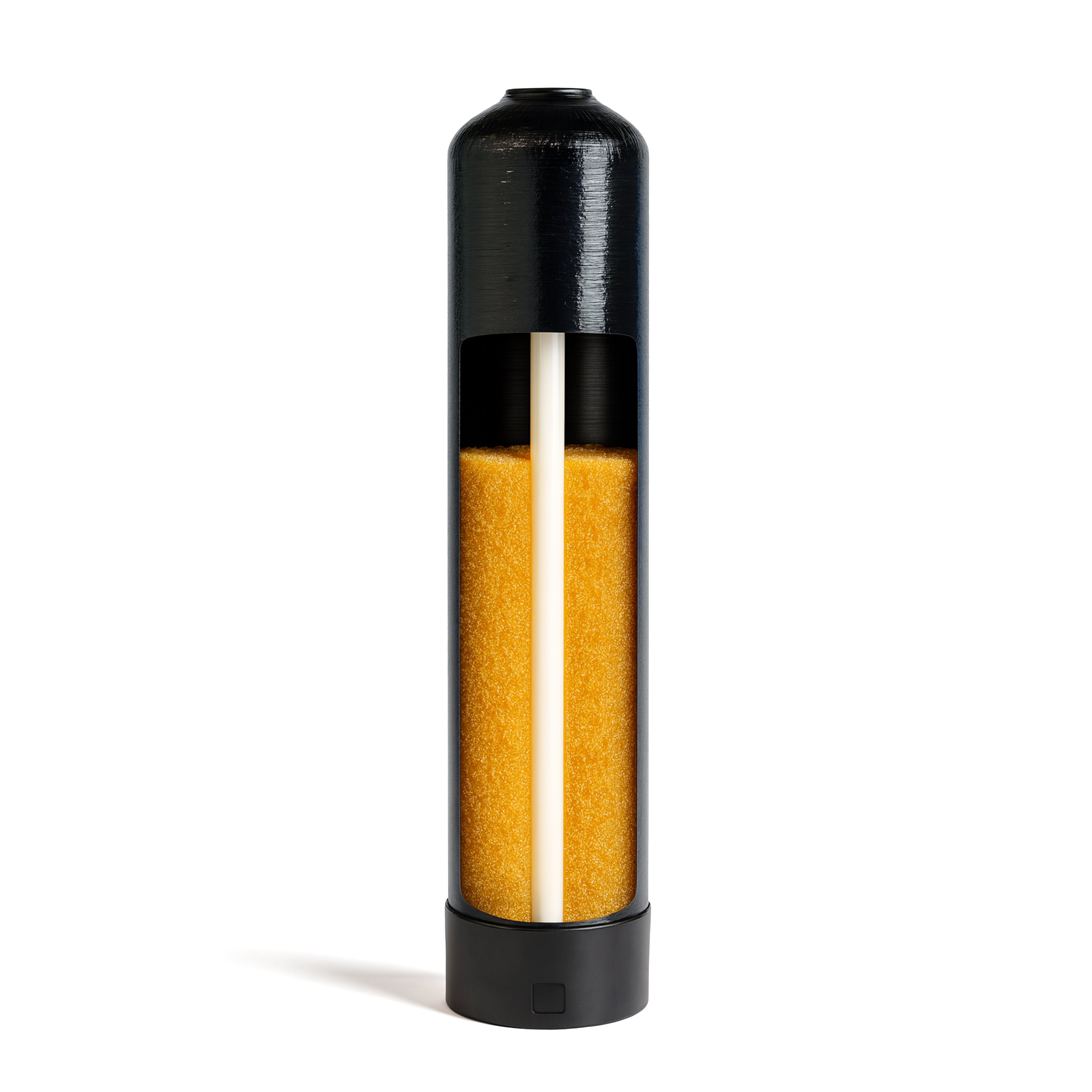

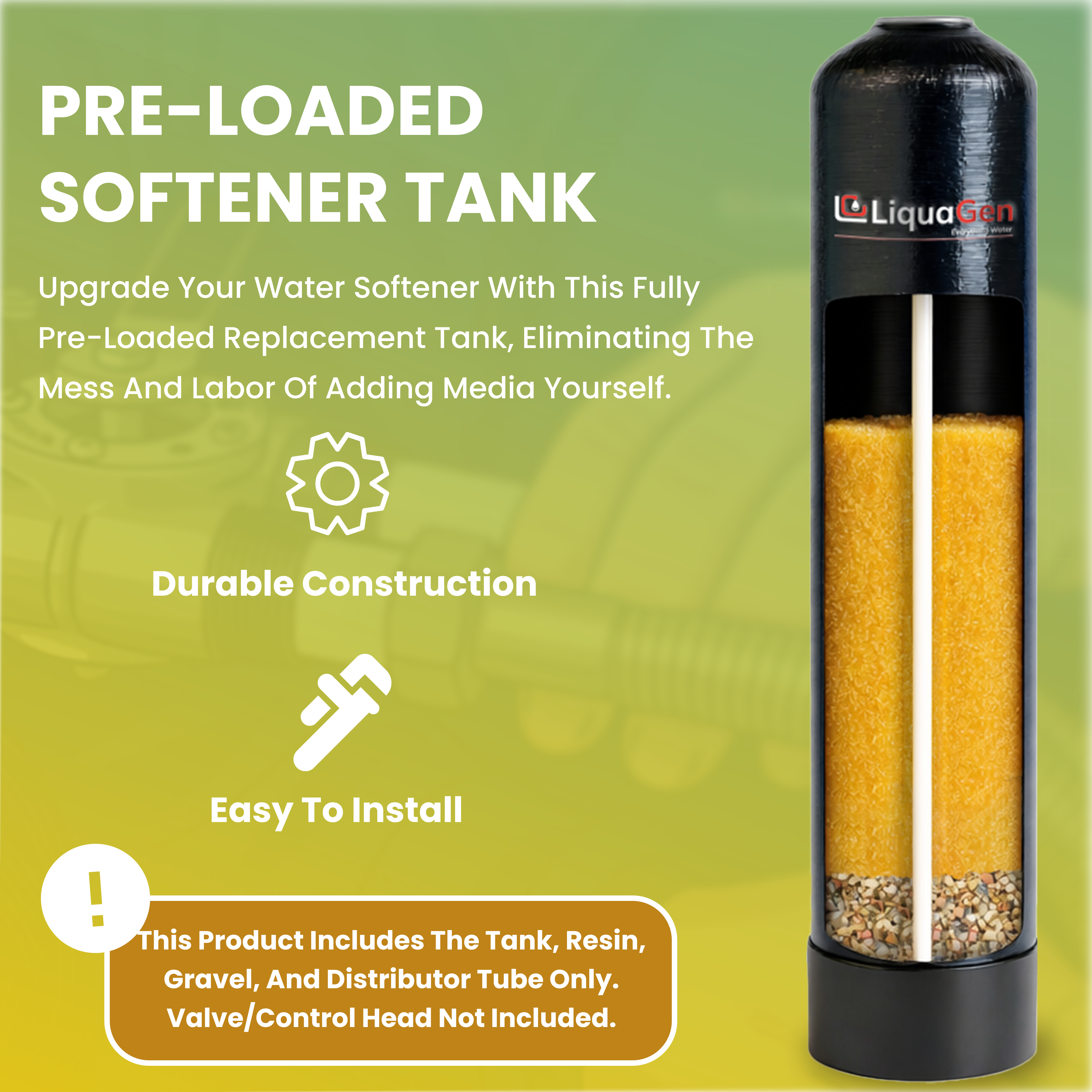

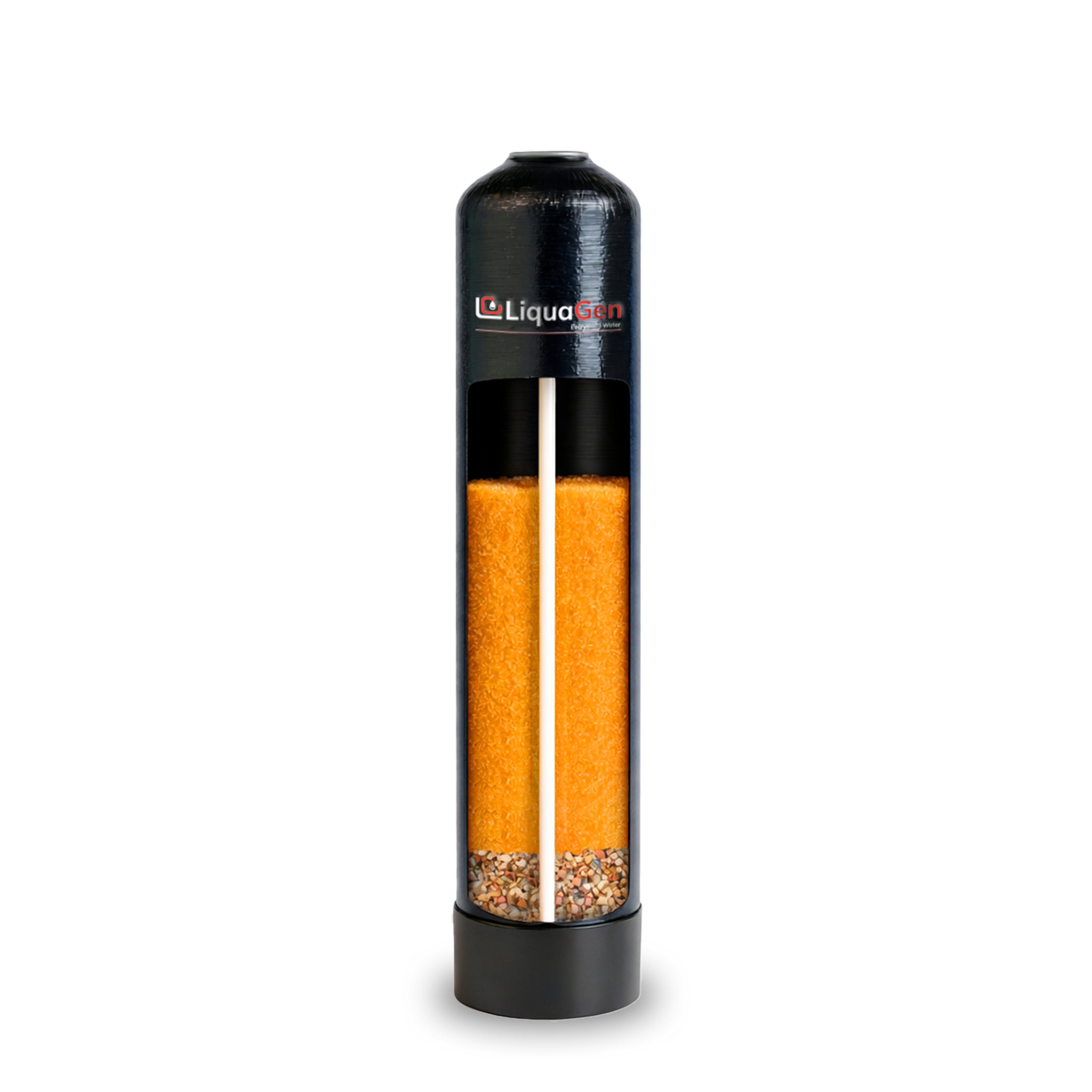

Upgrade your old water softener tank with this pre-loaded replacement tank, designed to eliminate the hassle of manually replacing resin media. Each tank comes fully pre-loaded with specialty Fine Mesh cation exchange resin, gravel underbed, and a riser/distributor tube pre-installed for easy installation.

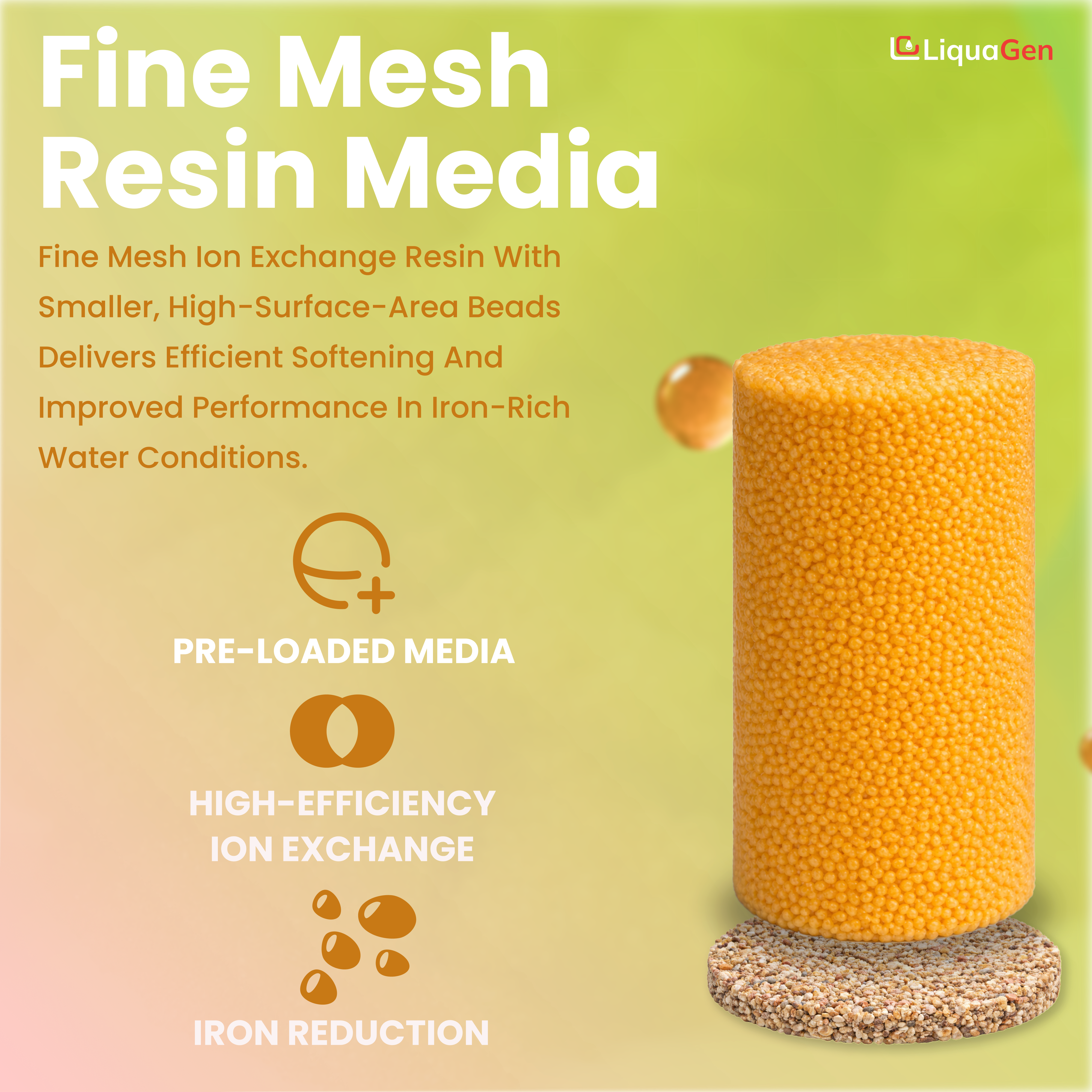

Fine Mesh Resin is specially engineered for well water applications with high iron content. Its smaller bead size provides more surface area, allowing for more efficient iron removal while still softening water by removing calcium and magnesium.

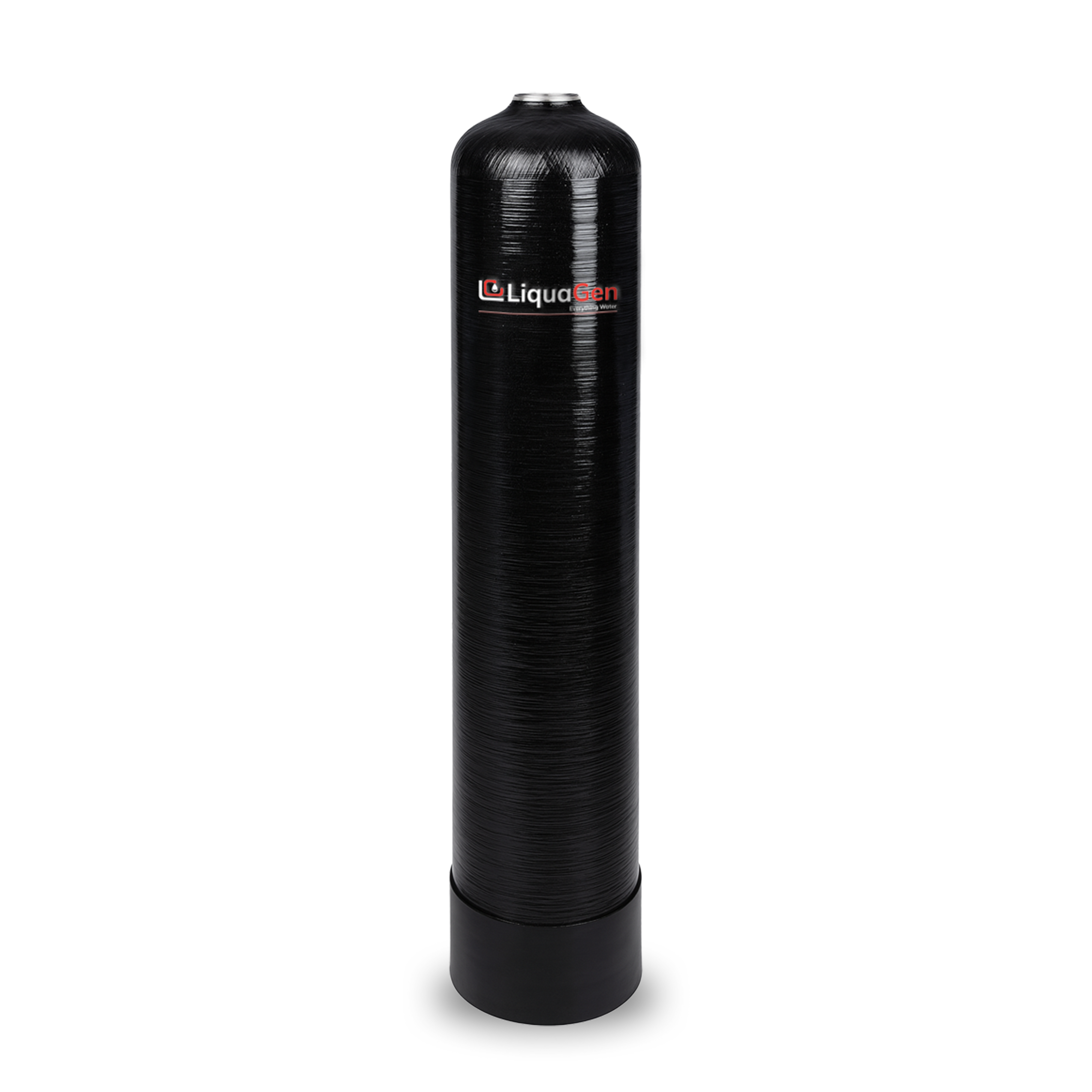

Constructed of durable composite resin and reinforced with high-tensile filament windings, these structural tanks are built to resist corrosion and provide years of reliable service.
💡 Want to upgrade your system? Add our KDF MediaGuard at the time of purchase, and we’ll install it inside the tank to transform your softener into a softener + filter combo system.
⚠️ Note: This product includes the tank, resin, gravel, and distributor tube only. Valve/Control Head not included.
📏 Size & Resin Capacity Chart (Fine Mesh Resin – Well Water)
| Tank Size | Cubic Feet (Cu Ft) | Resin Capacity | Gravel Underbed |
|---|---|---|---|
| 8" x 44" | 0.75 Cu Ft | 0.75 Cu Ft Fine Mesh Resin | ~10 lbs Gravel |
| 9" x 48" | 1.0 Cu Ft | 1.0 Cu Ft Fine Mesh Resin | ~12 lbs Gravel |
| 10" x 54" | 1.5 Cu Ft | 1.5 Cu Ft Fine Mesh Resin | ~15 lbs Gravel |
| 12" x 52" | 2.0 Cu Ft | 2.0 Cu Ft Fine Mesh Resin | ~20 lbs Gravel |
✅ Key Features
-
Pre-Loaded Convenience – Tank comes pre-filled with premium Fine Mesh resin + gravel.
-
Iron Removal – Ideal for well water; fine mesh beads are highly effective at removing iron.
-
Durable Construction – Structural composite tank reinforced with filament windings.
-
Easy Installation – Includes riser/distributor tube, ready to connect.
-
Upgrade Option – Add KDF MediaGuard for filtration + softening in one tank.
