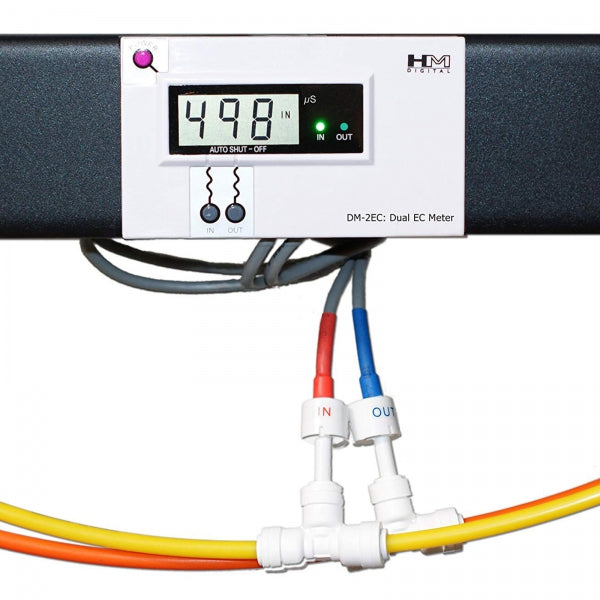

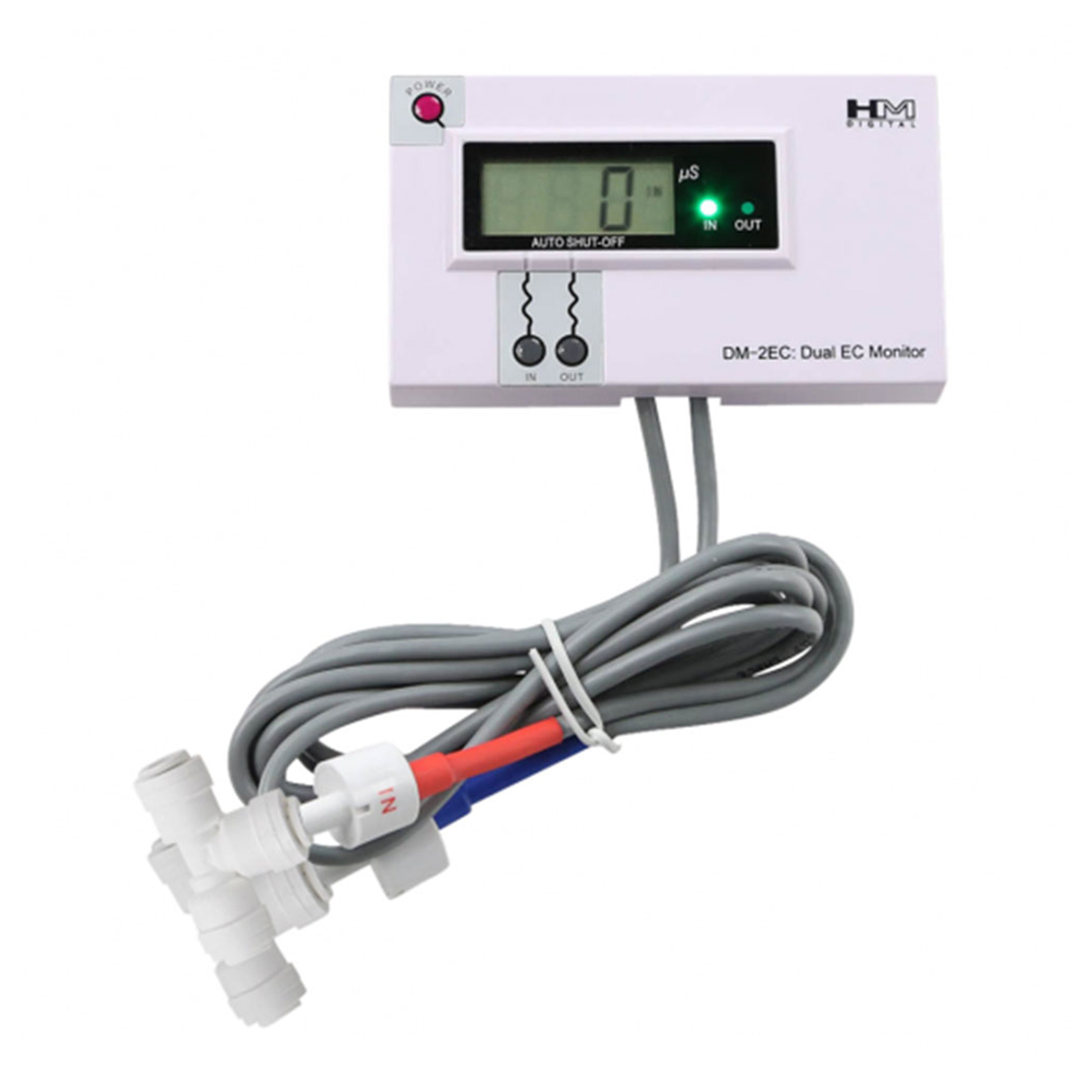

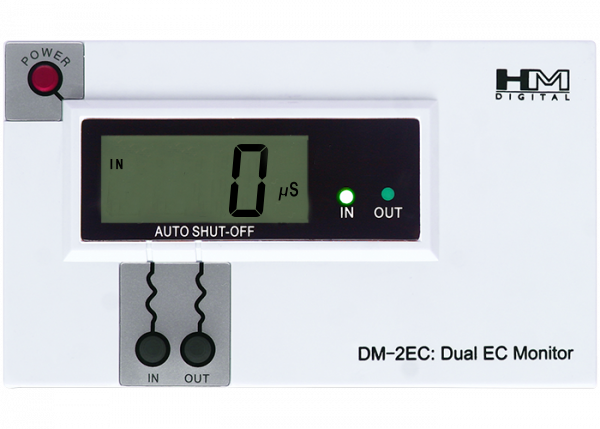

DM-2EC: Commercial In-Line Dual EC Monitor
The DM-2EC is a commercial grade monitor measuring ELECTRICAL CONDUCTIVITY feed (input) water vs. product (output) water of a water filtration system at any time. With its shielded cables and diagnostic messaging this robust device is ideal for Reverse Osmosis (RO), Deionized water (DI) filtration systems that work well in applications such as industrial water filtration systems for car washes, window washing, manufacturing, and food processing.
- Highly efficient and accurate due to its advanced microprocessor technology
- Displays EC levels of the Feed Water and Product Water with in & out electrode probes
- Auto-Off function conserves battery power (Shuts off automatically after 3 minutes)
- Factory Calibrated: calibrated to 1413 µS. The DM-2EC features digital calibration.
- Diagnostic error messaging
- Shielded sensor cables
- Comes equipped with two 1/4 inch T-fittings
- Range: 0-9990 µS Dual Range – Measures from 0-999 µS, with a resolution of 1 ppm. From 1000 to 9990 µS, the resolution is in 10 µS increments, indicated by a blinking ‘x10’ image.
- Accuracy: ±2%
- Cable Length: 46″ (including sensor), shielded cables
- Sensor: Dual, 1/4″ diameter for quick-connect fittings (model SP-3, included)
- Digital Calibration: Digitally factory calibrated to 1413 µS. Re-calibration can be done separately for each line.
- Power source: 2 x AA batteries (included)
- Battery life: Approx. 2 years
IN THE BOX:
- DM-2EC Meter
- 2 Pack ¼” Push Connect Tee
- 2 Pack AA Batteries
